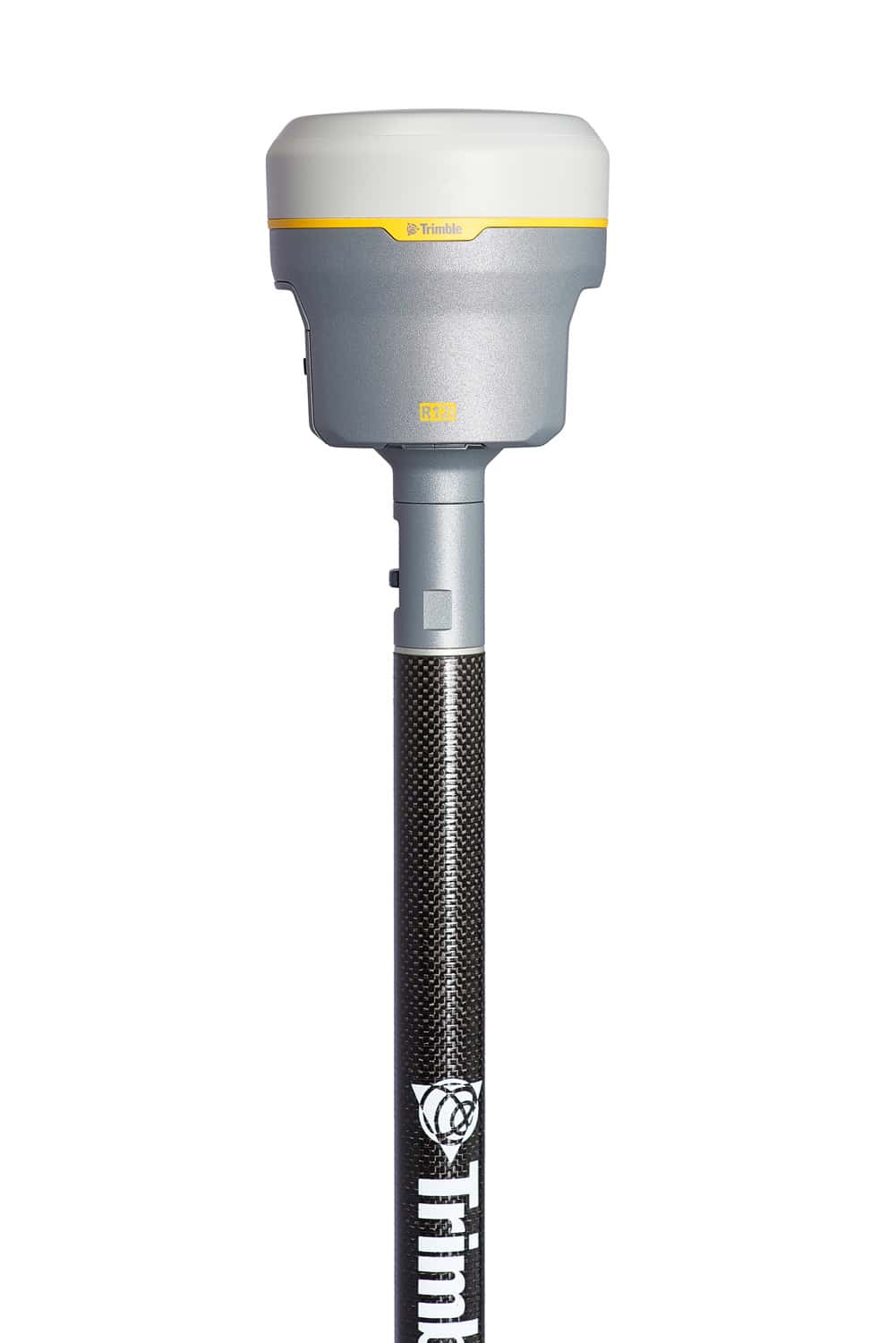

– Trimble R12i GNSS receiver without radio modem

– Trimble Custom Survey GNSS ASIC with 672 GNSS channels and a radio modem for sending and receiving RTK corrections

– built-in precise GPS L1/L2/L5/GLONASS/Galileo/BeiDou/SBAS/QZSS/NavIC antenna

– Bluetooth and GSM/GPRS modem (3.5G/LTE Quad band)

– Wi-Fi for Access point and client mode

– accuracy of statics 3mm+0.1ppm RMS horizontally

– static accuracy 3.5mm+0.4ppm RMS vertically

– network kinematics accuracy 8mm+0.5ppm RMS horizontally

– Trimble 360 tracking with 672 channels, 6 GB internal memory to store more than 10 years of RAW data collection (average 1.4 MB/day) with 14 satellites at 15s interval

– simultaneous monitoring:

GPS: L1C, L1C/A, L2C, L2E, L5

GLONASS: L1C/A, L1P, L2C/A, L2P, L3

SBAS: L1C/A, L5 (for SBAS satellites supporting L5)

Galileo: E1, E5A, E5B, E5 AltBOC, E6

BeiDou: B1, B1C, B2, B2A, B2B, B3

QZSS: L1C/A, L1S, L1C, L2C, L5, L6

NavIC (IRNSS): L5

L-band: Trimble RTX™ Corrections

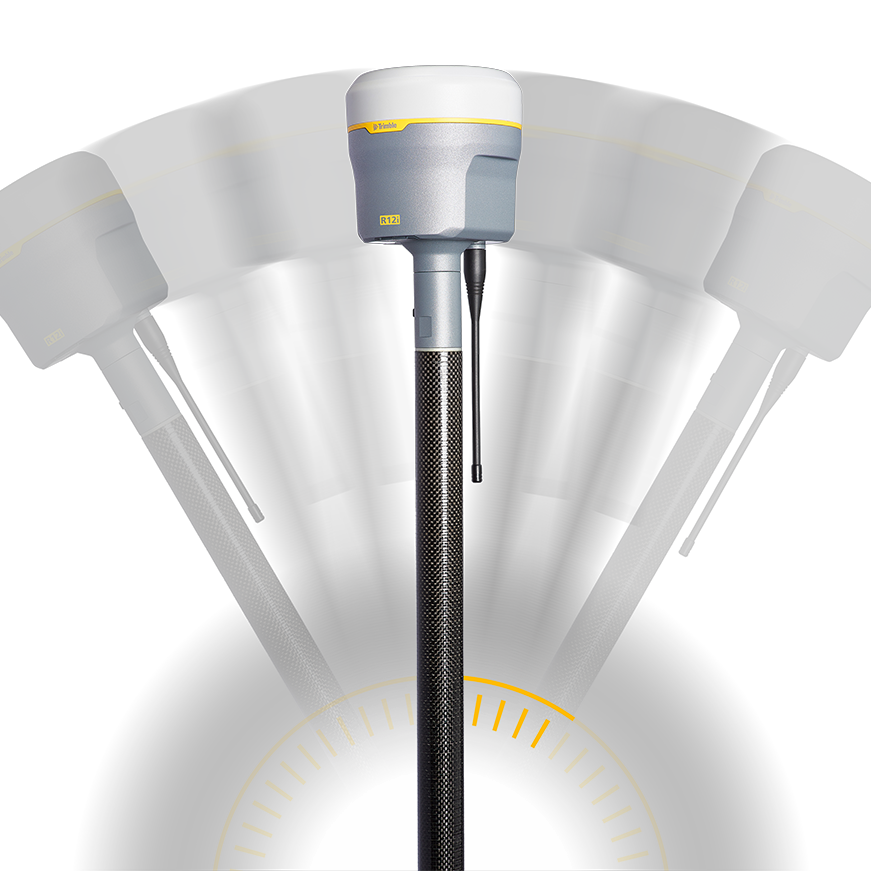

– Trimble Inertial Platform (TIP) precise tilt compensation up to 30° using built-in IMU

Accuracy of TYPE compensated measurement:

RTK + 5mm + 0.4mm/° tilt (up to 30°) RMS

RTX + 5mm + 0.4mm/°tilt (up to 30°) RMS

IMU system integrity monitoring: temperature, age and shock

– Trimble ProPoint™ innovative GNSS technology for measurements in very demanding GNSS environments

– CenterPoint RTX positioning

– QZSS, WAAS, MSAS, EGNOS, GAGAN

– 1 Hz, 2 Hz, 5 Hz, 10 Hz and 20 Hz positioning

– xFill – continuation of RTK precision operation after loss of RTK correction for up to 5 minutes

– WebUI connectable via Wi-Fi, USB, serial or bluetooth connection

– NTRIP Caster, NTRIP Server, NTRIP Client

– CMR+, CMRx, RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2

– GSOF, RT17 and RT27 outputs, 24 NMEA outputs (extra charge)

– reception and application of CROPOS automatic RTCM transformation

– 1 x LiIon battery (for 6.5 hours of operation in rover mode)

– protective transport case

– built-in receiver for Trimbe RTX differential correction

– built-in receiver for Omnistar differential correction

– warranty period of 12 months with the possibility of extension up to 5 years

The Trimble R12i GNSS receiver with Trimble ProPoint™ GNSS technology offers unmatched GNSS performance, speed and accuracy.
